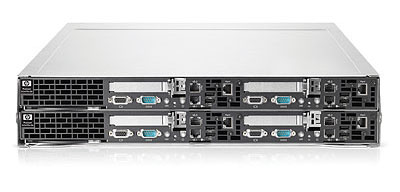

HP ProLiant SL2x170z G6Сервер для рабочих групп в форм-факторе Rackmount 2U с поддержкой SFF и LFF дисков и возможностью установки до 2 процессоров Intel Xeon 5500 серии Задать вопрос по товару
Отправить запрос менеджеру |
Техническое описание HP ProLiant SL2x170z G6The HP ProLiant SL2x170z G6 server is part of a new family, HP ProLiant SL6000, of HP server solutions optimized for scale-out customers to greatly reduce costs, maximize power efficiency, by sharing power supplies and fans, and maintain total flexibility.
Four independent HP ProLiant SL2x170z G6 Servers, two per 1U tray, go into the 2U HP ProLiant z6000 G6 Chassis. Each server supports up to two Intel® Xeon® processors with 16 DDR3 DIMM sockets, 1 LFF, 2 SFF or 2 SSD hard drives and support for a low profile x16 PCI-e Gen 2.
The HP ProLiant SL2x170z G6 is optimized for ultra dense environments.
| QuickSpecs | |
|---|---|
| See detailed specs | US QuickSpecs » html » pdf |
| Processor | |
|---|---|
| Processor family | Intel® Xeon® 5600 series Intel® Xeon® 5500 series |
| Number of processors | 2 |
| Processor core available | 6 or 4 or 2 |
| Memory | |
|---|---|
| Maximum memory | 192 GB |
| Memory slots | 16 DIMM slots |
| Memory type | PC3-8500R/10600R DDR3 RDIMMs PC3-10600E DDR3 UDIMMs |
| I/O | |
|---|---|
| Expansion slots | Optional Slot 1: low-profile x16 PCI-Express 2.0 |
| Network Controller | (1) 1GbE NC362i 2 Ports |
| Storage | |
|---|---|
| Maximum drive bays | (2) LFF SAS/SATA or (4) SFF SAS/SATA/SSD 1 LFF or 2 SFF each system board |
| Supported drives | Non-hot plug 3.5-inch SATA Non-hot plug 3.5-inch SAS Non-hot plug SFF SATA Non-hot plug SFF SAS Non-hot plug SSD |
| Storage Controller | (1) Smart Array B110i SATA RAID |
| Deployment | |
|---|---|
| System fans | Redundant optional |
| Power Supply | Hot-Plug redundant power supply |
| Form Factor (fully configured) | 1U pluggable server tray |
| Infrastructure management | Onboard Administrator Powered by Lights Out and Systems Insight Manager (SIM) |
| Warranty - year(s) (parts/labor/onsite) | 1/1/1 |
Информация для заказа:
Процессоры:
| 592168-B21 | HP SL2x170z G6 Intel® Xeon® X5680 (3.33GHz/6-core/12MB/130W) Processor Kitt |
| 592172-B21 | HP SL2x170z G6 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit |
| 592174-B21 | HP SL2x170z G6 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit |
| 592308-B21 | HP SL2x170z G6 Intel® Xeon® E5640 (2.66GHz/4-core/12MB/80W) Processor Kit |
| 592304-B21 | HP SL2x170z G6 Intel® Xeon® E5630 (2.53GHz/4-core/12MB/80W) Processor Kit |
| 592306-B21 | HP SL2x170z G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) Processor Kit |
| 592325-B21 | HP SL2x170z G6 Intel® Xeon® L5640 (2.26GHz/6-core/12MB/60W) Processor Kit |
| 592327-B21 | HP SL2x170z G6 Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W) Processor Kit |
| 570454-B21 | HP SL2x170z G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit |
| 588193-B21 | HP SL2x170z G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit |
| 570456-B21 | HP SL2x170z G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit |
| 570458-B21 | HP SL2x170z G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit |
| 570481-B21 | HP SL2x170z G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit |
| 592321-B21 | HP SL2x170z G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit |
| 570450-B21 | HP SL2x170z G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit |
| 586603-B21 | HP SL2x170z G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) Processor Kit |
| 570485-B21 | HP SL2x170z G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit |
| 570483-B21 | HP SL2x170z G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) Processor Kit |
| 592323-B21 | HP SL2x170z G6 Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) Processor Kit |
| 571707-B21 | HP SL2x170z G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) Processor Kit |
Память:
| 500656-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit |
| 500658-B21 | HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit |
| 500660-B21 | HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit |
| 593339-B21 | HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit |
| 604504-B21 | HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit |
| 500662-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit |
| 604506-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit |
| 500666-B21 | HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit |
| 500668-B21 | HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit |
| 500670-B21 | HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit |
| 500672-B21 | HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit |
| 619488-B21 | HP 4GB (1x4GB) Dual Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low Power Memory Kit |
Жесткие диски:
| 574758-B21 | HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive |
| 585980-B21 | HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive |
| 574879-B21 | HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive |
| 574761-B21 | HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Quick-release Dual Port Midline 1yr Warranty Hard Drive |
| 574021-B21 | HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Quick-release Entry 1yr Warranty Hard Drive |
| 574755-B21 | HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive |
| 574025-B21 | HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive |
| 574023-B21 | HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive |
| 574953-B21 | HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Quick-release Midline 1yr Warranty Hard Drive |
| 586587-B21 | HP 120GB 3G SATA SFF (2.5-inch) Quick-release Midline 1yr Warranty Solid State Drive |
| 586585-B21 | HP 60GB 3G SATA SFF (2.5-inch) Quick-release Midline 1yr Warranty Solid State Drive |
Контроллеры и опции:
| 503746-B21 | HP NC112T PCI Express Gigabit Server Adapter |
| 412648-B21 | HP NC360T PCI-E Dual Port Gigabit Server Adapter |
| 435508-B21 | HP NC364T PCI-E Quad Port Gigabit Server Adapter |
| 394793-B21 | HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter |
| 394791-B21 | HP NC373T PCI-E Multifunction Gigabit Server Adapter |
| 538696-B21 | HP NC375T PCI Express Quad Port Gigabit Server Adapter |
| 458492-B21 | HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter |
| 468332-B21 | HP NC522SFP Dual Port 10GbE Gigabit Server Adapter |
| 593717-B21 | HP NC523SFP 10Gb 2-port Server Adapter |
| 581201-B21 | HP NC550SFP Dual Port 10GbE Server Adapter |
| 614203-B21 | HP NC552SFP 10Gb 2-port Ethernet Server Adapter |
| 516937-B21 | HP 10 GbE PCI-e G2 Dual Port Network Interface Card |
| 503296-B21 | HP 460W Common Slot Gold Hot Plug Power Supply Kit |
| 593188-B21 | HP 460W Common Slot Platinum Hot Plug Power Supply Kit |
| 593831-B21 | HP 750W Common Slot Platinum Hot Plug Power Supply Kit |
| 512327-B21 | HP 750W Common Slot Gold Hot Plug Power Supply Kit |
| 500172-B21 | HP 1200W Common Slot Silver Hot Plug Power Supply Kit |
| 578322-B21 | HP 1200W Common Slot Platinum Hot Plug Power Supply Kit |
