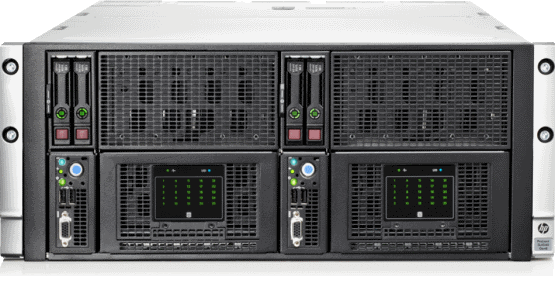

HP ProLiant SL4540 Gen8Сервер уровня предприятия в форм-факторе Rackmount 4.3U с поддержкой SFF и LFF дисков и возможностью установки до 2 процессоров Intel Xeon E5-2400 |
Техническое описание HP ProLiant SL4540 Gen8Сервер HP ProLiant SL4540 Gen8 способен решить проблемы структурированных баз данных при работе с большими объемами информации. Интеграция масштабируемой инфраструктуры приводит к проблемам с объемами ЦОД, увеличению расходов на энергопотребление, усложнению инфраструктуры и неэффективности, так как современные разрозненные инфраструктуры не оптимизированы для нагрузок, при которых функционируют масштабированные серверы во время обработки больших объемов информации. Высокоэффективная конвергентная конструкция, оптимально сочетающая емкость и производительность с использованием меньшего объема пространства на жестком диске и меньшими затратами, обеспечивающая надежность и управляемость.
| Технические характеристики | |
|---|---|
| Количество процессоров | 2 |
| Количество ядер процессора | 10, 8 6, или 4 |
| Максимальный объем памяти | 384GB |
| Слоты для памяти | 12 слота DIMM |
| Тип памяти | DDR3 Registered (RDIMM) |
| Слоты расширения | (1) максимум |
| Сетевой контроллер | HP Ethernet 1Gb 2-port 361i или HP Ethernet 10Gb 2-Port 544i Adapter |
| Блок питания | Обеспечивается полкой HP ProLiant s4500 |
| Контроллер хранилища | Smart Array B110i SATA RAID |
| Форм-фактор | 4.3U |
| Управление инфраструктурой | Integrated Lights-Out (iLO 3) |
| Гарантия – лет (детали/качество изготовления/обслуживание у заказчика) | 1/1/1 |
Информация для заказа:
Память:
| Артикул | Наименование |
| 713981-B21 | HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
| 731765-B21 | HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
| 713983-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
| 713985-B21 | HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage Memory Kit |
| 647903-B21 | HP 32GB (1x16GB) Dual Rank x4 PC3L-10600L (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
| 647893-B21 | HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
| 647897-B21 | HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
| 647901-B21 | HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
| 647903-B21 | HP 32GB (1x16GB) Dual Rank x4 PC3L-10600L (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit |
Процессор:
| Артикул | Наименование |
| 740674-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2470v2 (2.4GHz/10-core/25MB/95W) Processor Kit |
| 744134-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2450Lv2 (1.7GHz/10-core/25MB/60W) Processor Kit |
| 740695-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2450v2 (2.5GHz/8-core/20MB/95W) Processor Kit |
| 740677-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2440v2 (1.9GHz/8-core/20MB/95W) Processor Kit |
| 740680-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2430v2 (2.5GHz/6-core/15MB/80W) Processor Kit |
| 740689-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2430Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit |
| 740693-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2420v2 (2.2GHz/6-core/15MB/80W) Processor Kit |
| 740691-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/80W) Processor Kit |
| 730777-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor Kit |
| 684373-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor Kit |
| 728427-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor Kit |
| 684379-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor Kit |
| 686169-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor Kit |
| 684376-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor Kit |
| 686166-B21 | HP SL4540 Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor Kit |
Жесткие диски:
| Артикул | Наименование |
| 765424-B21 | HP 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive |
| 652620-B21 | HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive |
| 652615-B21 | HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive |
| 761477-B21 | HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 695510-B21 | HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 652766-B21 | HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 652757-B21 | HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 652753-B21 | HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 655710-B21 | HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
| 655708-B21 | HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive |
| 753874-B21 | HP 6TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 693687-B21 | HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 628061-B21 | HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 658079-B21 | HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 657750-B21 | HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 658071-B21 | HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive |
| 718189-B21 | HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
| 739900-B21 | HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
| 718183-B21 | HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
| 739890-B21 | HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
| 718177-B21 | HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive |
| 691868-B21 | HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691866-B21 | HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691864-B21 | HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691862-B21 | HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691860-B21 | HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691856-B21 | HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691854-B21 | HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 691852-B21 | HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive |
| 762270-B21 | HP 800GB 12G SAS VE 3.5in SCC EV SSD |
| 762272-B21 | HP 1.6TB 12G SAS VE 3.5in SCC EV SSD |
| 762261-B21 | HP 800GB 12G SAS VE 2.5in SC EV SSD |
| 762263-B21 | HP 1.6TB 12G SAS VE 2.5in SC EV SSD |
Сетевые карты:
| Артикул | Наименование |
| 593722-B21 | HP NC365T 4-port Ethernet Server Adapter |
| 647594-B21 | HP Ethernet 1Gb 4-port 331T Adapter |
| 652503-B21 | HP Ethernet 10Gb 2-port 530SFP Adapter |
| 656596-B21 | HP Ethernet 10Gb 2-port 530T Adapter |
| 665249-B21 | HP Ethernet 10Gb 2-port 560SFP+ Adapter |
| 716591-B21 | HP Ethernet 10Gb 2-port 561T Adapter |
Контроллеры и опции:
| Артикул | Наименование |
| 631673-B21 | HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller |
| 631674-B21 | HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller |
| 698532-B21 | HP Smart Array P431/4GB FBWC 6Gb 2-ports Ext SAS Controller |
| 668943-B21 | HP 12in Super Capacity Option for Smart Array |
| 631679-B21 | HP 1GB P-series Smart Array Flash Backed Write Cache |
| 631681-B21 | HP 2GB P-series Smart Array Flash Backed Write Cache |
Сервис и поддержка:
| Артикул | Наименование |
| C6N28ABE | HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License |
| BD776AAE | HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU |
| BD776A | HP Integrated Lights-Out Scale-Out 3yr 24x7 Tech Support and Updates Flex Quantity License |
| BD777A | HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Tracking License |
| BD778AAE | HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU |
| BD778A | HP Integrated Lights-Out Scale-Out 1yr 24x7 Tech Support and Updates Flex Quantity License |
| BD779A | HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Tracking License |
| E6U59ABE | HP iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU |
| E6U64ABE | HP iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU |
| 512485-B21 | HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License |
| 512489-B21 | HP iLO Advanced for BladeSystem including 1yr 24x7 Support Eight Server License |
| BD505A | HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates |
